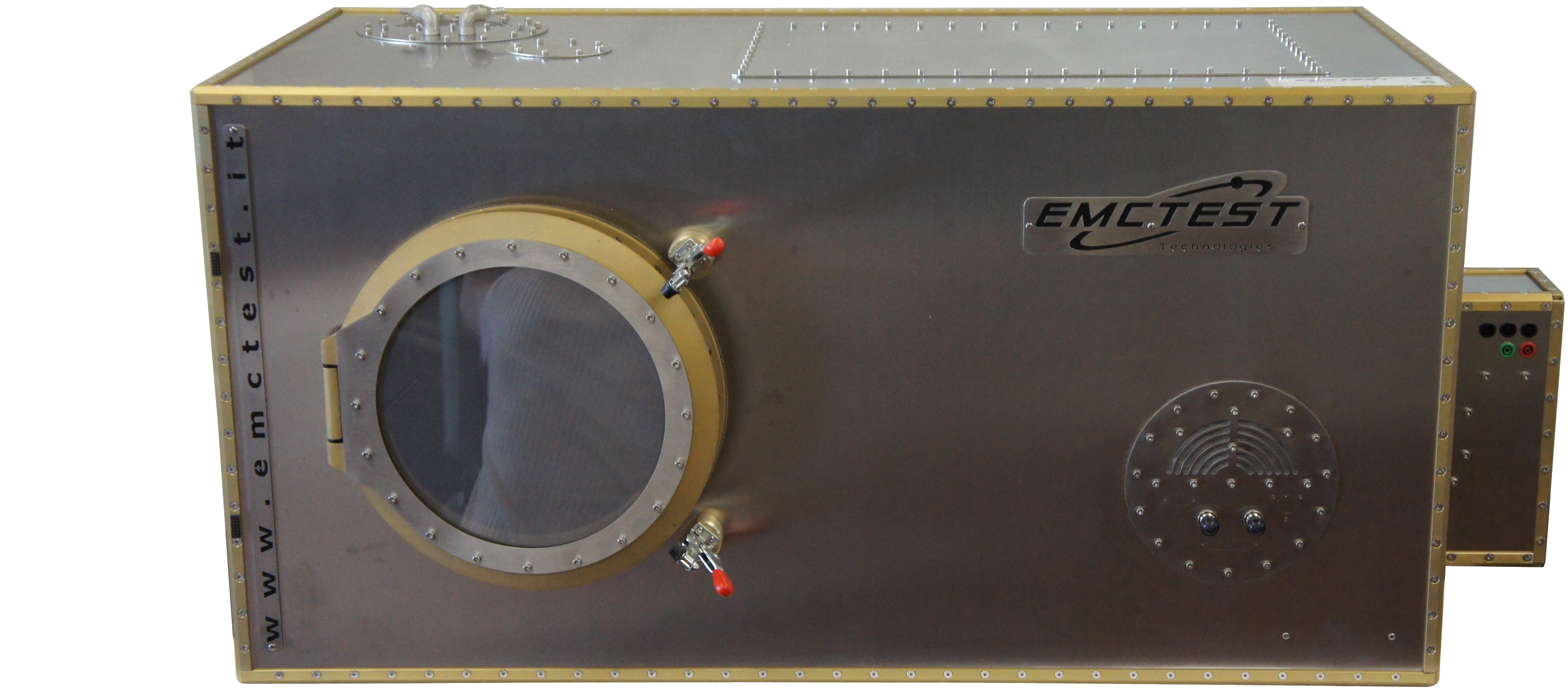

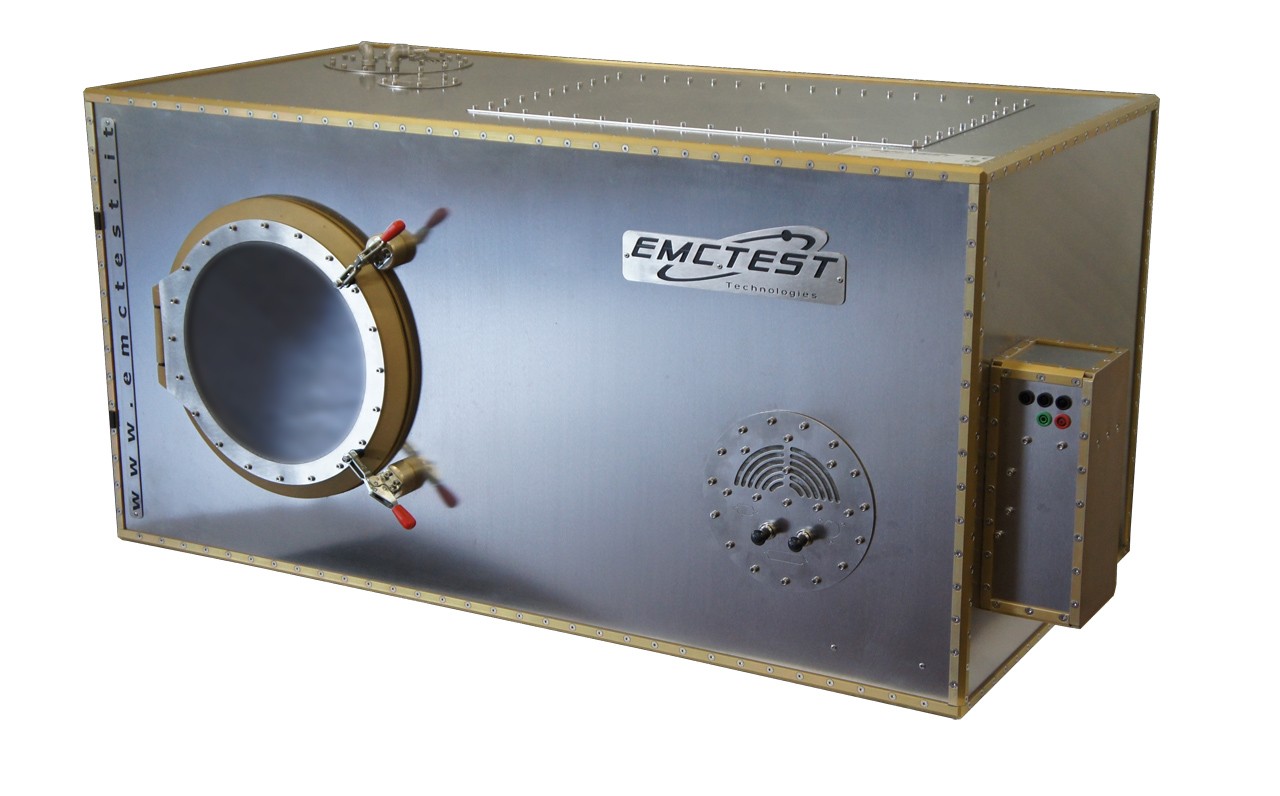

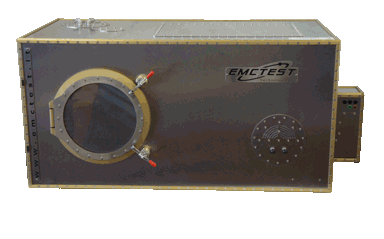

SHC - Shielded Anechoic Chamber - SU MISURA

Specifiche Tecniche

Operating Frequency: DC – 6000 MHz
Shielding performance >60 dB up to 120 dB*
Outer Dimensions: on demand
Door clearance: on demand
DUT MAX Size: on demand

Applicazioni

Specifically designed for telecom application
Ideal for devices like routers, laptops etc.
Precompliance Tests (Radiation and Immunity).
Path loss measurements
Receiver sensitivity test
Any sensitive measurements where shielding is needed

Punti di Forza

Engineered and completely manufactured in Italy.
Ruggedized fully INOX steel construction
Unique compact space-saving design
Portable and flexible
Can host larger DUTs
Completely modular
Wideband High effective RF shielding
Excellent quality – Military standard

Opzioni

Descrizione Prodotto

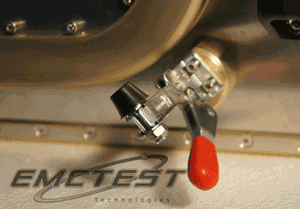

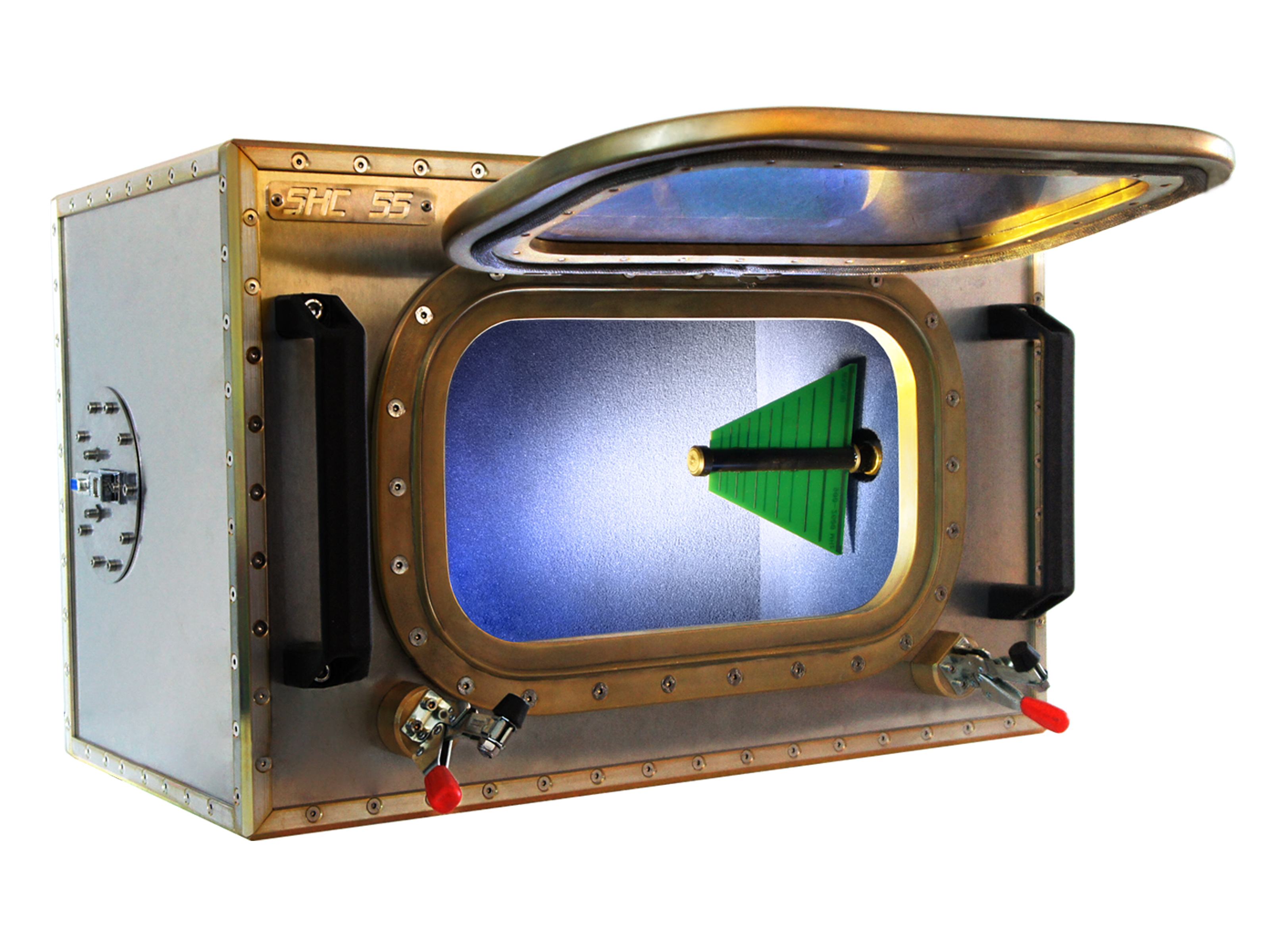

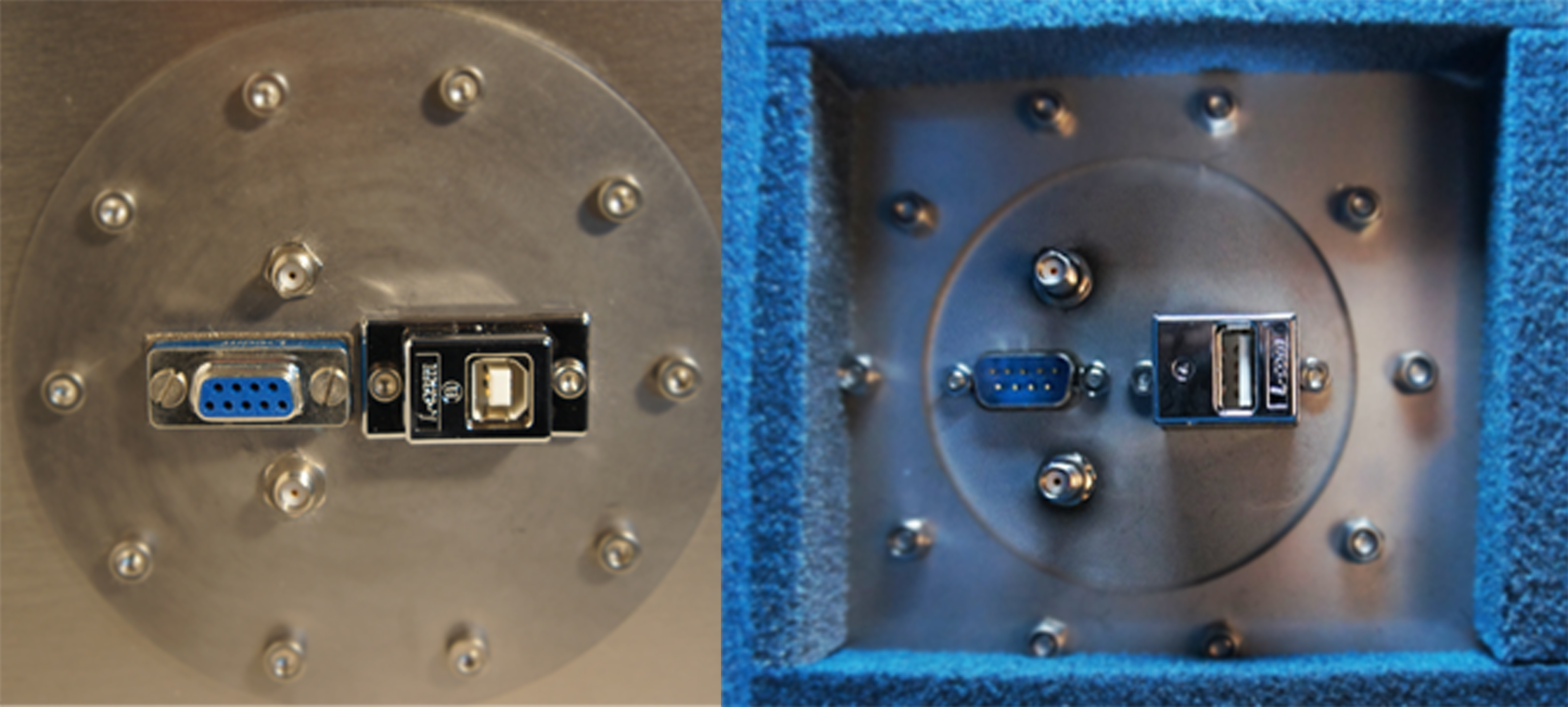

Designed specifically for laptops and other sized ISM or GSM/UMTS communication devices, it is projected in CAD ad CNC constructed with tolerances as 0.09 mm to maintain an exceptionally well shielded environment. Heavy duty, rugged 1.5 mm INOX steel is used throughout and high performance fabric non tissue gaskets are used at all joint locations assuring a reliable RF tight closure. Oversized hinges and latches together with our patented dual trapeziodal door coupling layout in ERGAL are used to provide a physically tight seal. The interior is optionally equipped with RF plain absorbers that provide a typical RF attenuation of -90dB @ 3GHz Perfect for 2.4GHz testing. Input/output connections and options can be configured to match any specific need thanks to a modular technical panel. Unit can host line filters for AC and DC power supplies up to 1000 V.
